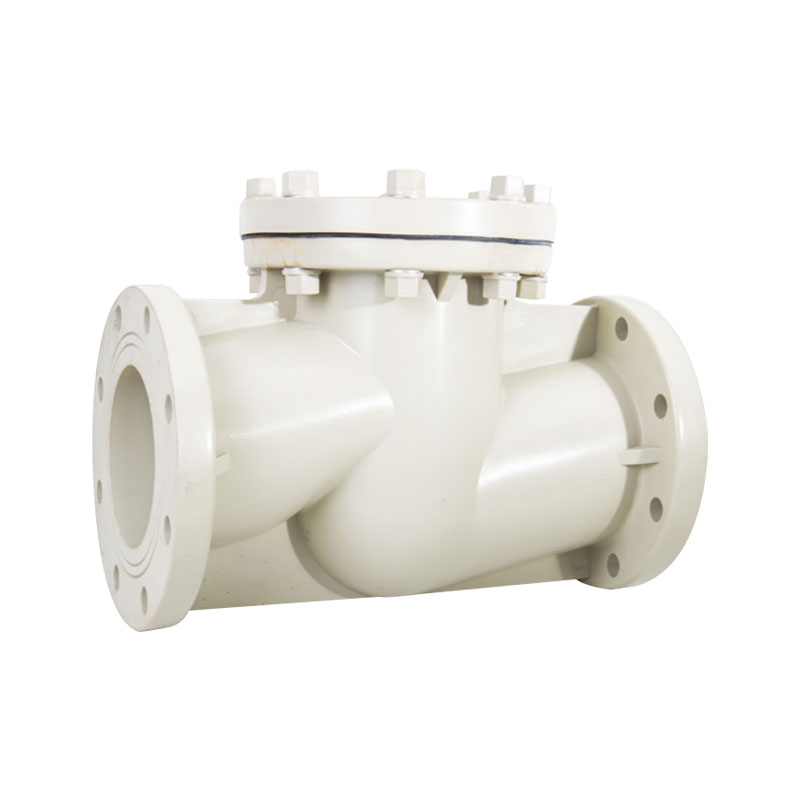

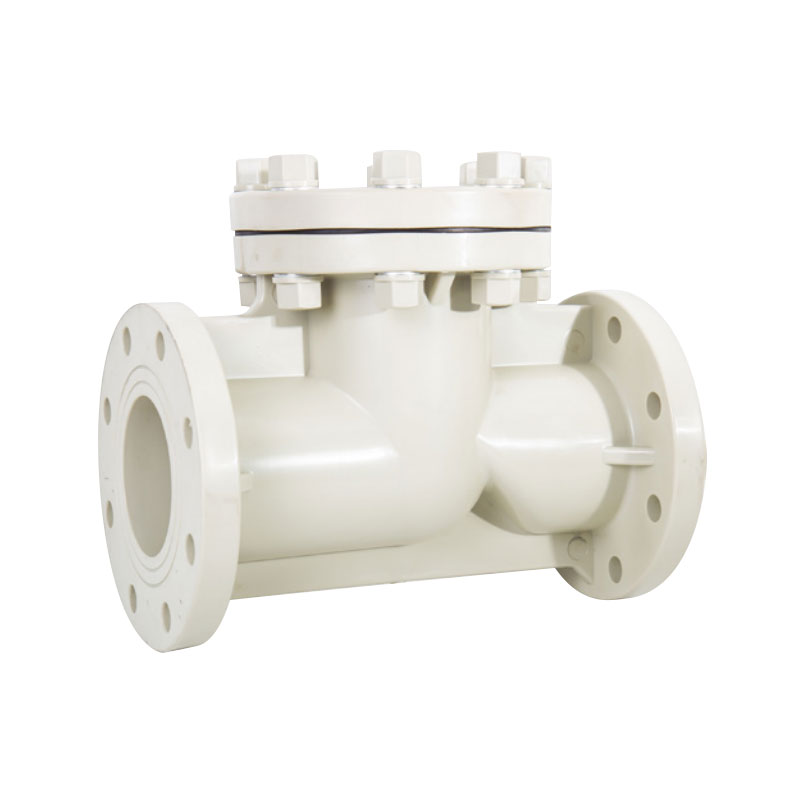

T-filter PPH
  • T-filter PPH
  • T-filter PPH

T-filter PPH

Features
T-type filter, suitable for use in corrosive medium pipelines.
Small installation size, large flow, and small flow resistance.
It is convenient to replace the filter screen, the filter residue is inside the filter screen.
Can be used for horizontal or vertical pipelines, pay attention to the flow direction when installing.
Contact Us

T-filter PPH Details

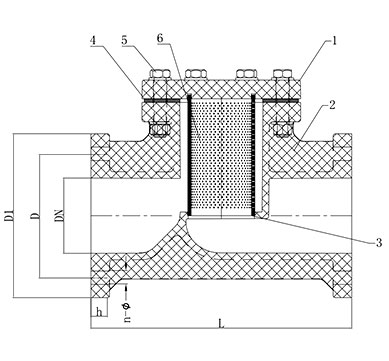

Parts&Material

No.

Parts

Materials

1

Bonnet

FRPP, PPH, UPVC, CPVC, PVDF

2

Body

FRPP, PPH, UPVC, CPVC, PVDF

3

Support

FRPP, PPH, PVDF

4

Cushion

EPDM, FPM, PTFE

5

Stud Bolt & Nut

steel， stainless steel

6

Screen

FRPP, PPH, PVDF

Dimensions Table (mm)

DN

D

D1

L

h

n

Φ

perforation size

working pressure（Mpa)

25

85

115

160

16

4

14

2

0.6

32

100

140

180

16

4

18

2

0.6

40

110

150

200

18

4

18

2

0.6

50

125

165

230

18

4

18

2

0.6

65

145

185

290

22

4

18

2

0.6

80

160

200

310

25

8

18

2

0.6

100

180

220

350

25

8

18

2

0.6

125

210

250

400

30

8

18

2

0.6

150

240

285

480

30

8

22

2

0.6
For special perforation size, please consult our company or local distributors
