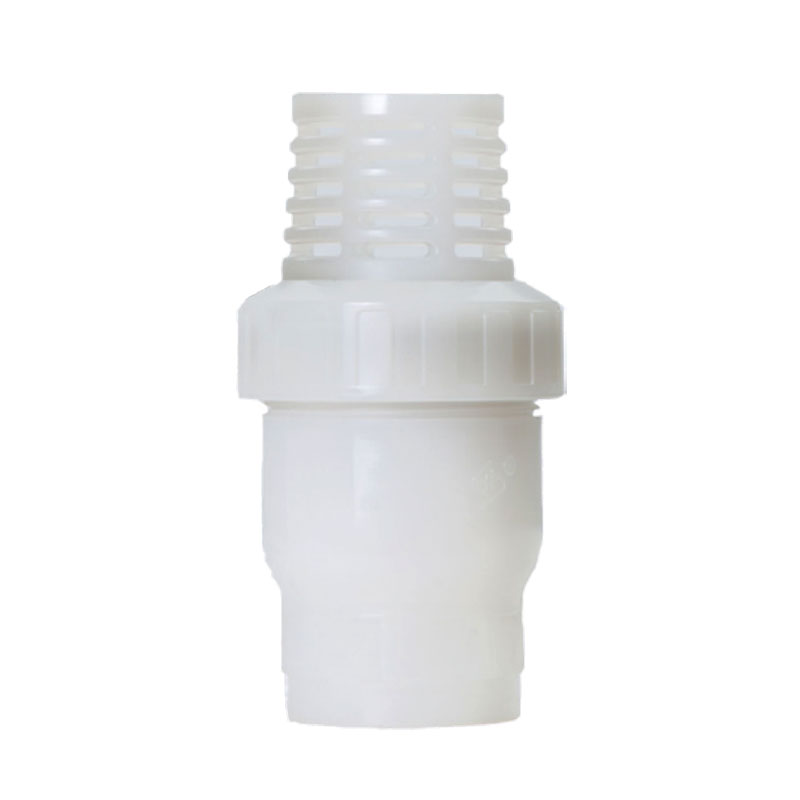

Foot valves, also known as foot check valves or suction valves, are specialized check valves used in pumping systems to maintain prime and prevent the loss of fluid when the pump is not in operation. They are typically installed at the end of a suction pipe or hose submerged in the fluid source, such as a well or a tank. Foot valves are essential for ensuring the efficient operation of centrifugal or jet pumps, particularly in applications where the pump needs to lift the fluid vertically.
Key Components and Operation:
Body: The body of a foot valve is the main housing that contains the internal components. It is typically made of materials such as cast iron, stainless steel, or PVC, depending on the application and the fluid being handled. The body is designed to withstand pressure and maintain structural integrity.
Strainer: A
foot valve incorporates a strainer or a screen at the bottom of the valve body. The strainer helps prevent large particles or debris from entering the pump, protecting it from damage and maintaining the quality of the fluid being pumped.
Check Valve Mechanism: The check valve mechanism within the foot valve allows flow in one direction and prevents backflow. It typically consists of a hinged flap or a ball that opens when the pump is operating, allowing fluid to enter the pump's suction line. When the pump is shut off, the flap or ball closes under its weight or with the help of a spring, preventing fluid from flowing back into the source.
Connection: Foot valves are designed to be connected to the suction line of a pump. They typically have a threaded or flanged connection for easy installation and a secure connection to the suction pipe or hose.
Advantages and Applications of Foot Valves:
Maintaining Prime: Foot valves are crucial for maintaining the prime in pumping systems. They ensure that the pump remains primed by preventing the loss of fluid from the suction line when the pump is not running. This eliminates the need for re-priming the pump every time it starts, saving time and effort.
Protection Against Debris: The strainer or screen in the foot valve prevents large particles or debris from entering the pump, reducing the risk of clogging and damage to the pump's impeller and other components. This is especially important in applications where the fluid source may contain sediment or debris.
Vertical Lift Applications:
Foot valves are commonly used in applications where the pump needs to lift the fluid vertically, such as from a well or a deep water source. By preventing backflow, foot valves ensure that the pump can effectively lift the fluid without losing the prime.
Agriculture and Irrigation: Foot valves are widely used in agricultural and irrigation systems, where they help maintain a continuous flow of water to the pump. They ensure that the pump remains primed, preventing interruptions in the water supply and improving the efficiency of the pumping system.
Industrial and Commercial Applications: Foot valves are also utilized in various industrial and commercial applications, such as water supply systems, fire protection systems, and wastewater treatment plants. They are particularly useful in situations where the pump needs to draw fluid from a lower elevation or a distant source.
Using a foot valve in a pumping system involves the following steps:
Proper Installation: Install the foot valve at the end of the suction pipe or hose, ensuring that it is submerged in the fluid source. The foot valve should be securely connected to the suction line using threaded or flanged connections.
Strainer Placement: Ensure that the strainer or screen on the foot valve is positioned at the bottom, facing downward. The strainer helps prevent debris from entering the pump, so it should be oriented correctly.
Check Valve Orientation: Check the orientation of the check valve mechanism within the foot valve. The flap or ball should be positioned in such a way that it can freely open when the pump is operating and close to prevent backflow when the pump is shut off.
Priming the Pump: Before starting the pump, ensure that the suction line and foot valve are filled with the fluid being pumped. This process is known as priming and helps create a vacuum that enables the pump to draw fluid effectively. Depending on the pump type and system configuration, priming may involve manual filling or using a priming mechanism.
Pump Operation: Start the pump and observe the fluid flow. The foot valve allows fluid to enter the suction line, and the check valve mechanism ensures that the fluid flows in one direction toward the pump. The
foot valve helps maintain the prime and prevents backflow when the pump is not running.
Maintenance and Inspection: Regularly inspect the foot valve for any signs of damage, wear, or blockages in the strainer. Clean the strainer if necessary to maintain optimal flow and prevent clogging. Follow manufacturer guidelines for maintenance intervals and procedures.
