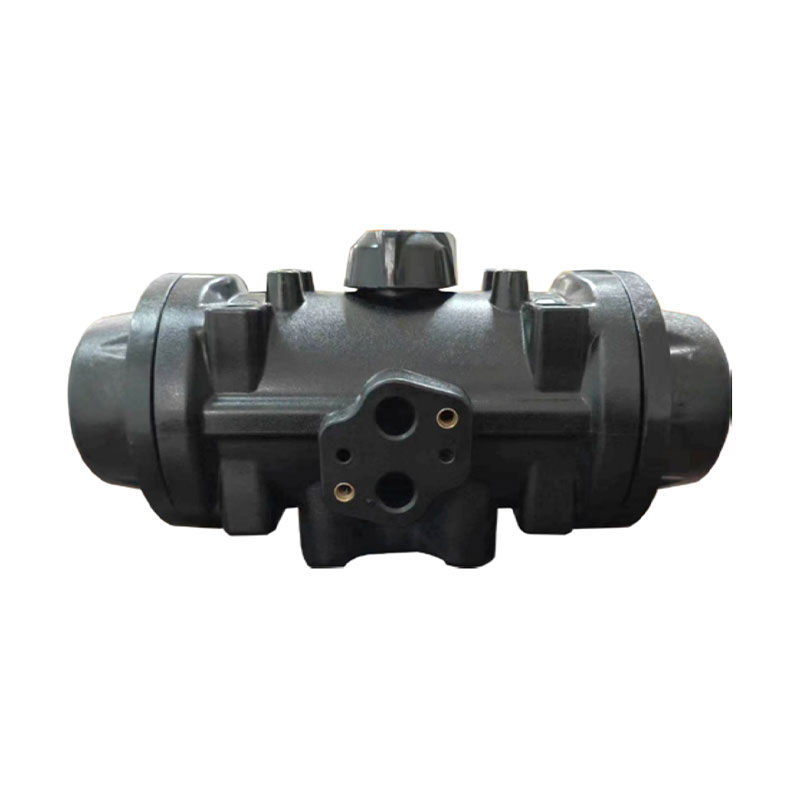

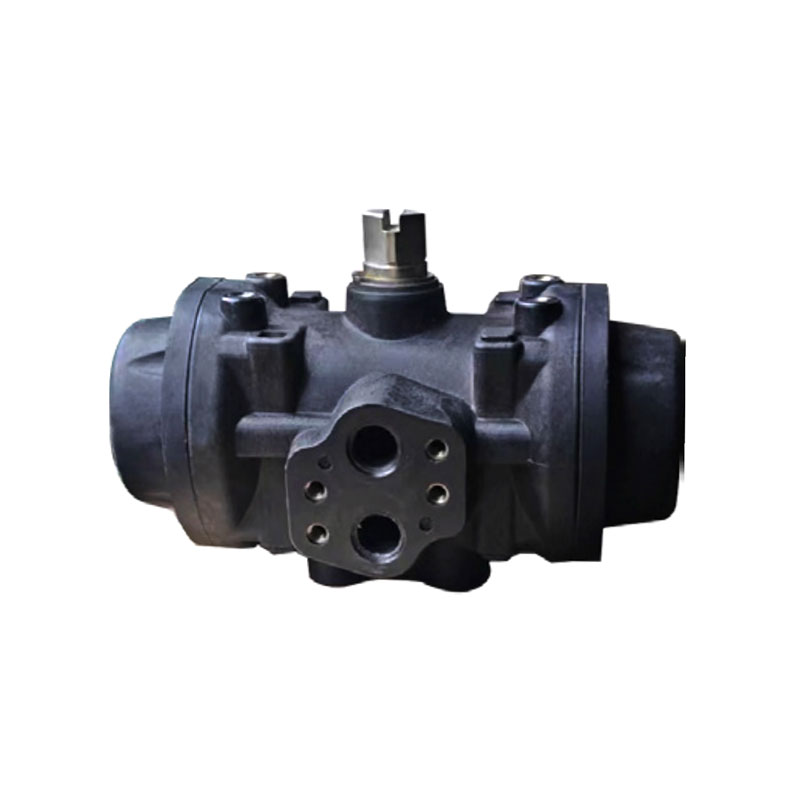

Corrosion resistant plastic pneumatic actuators

Corrosion resistant plastic pneumatic actuators

Features
Corrosion-resistant plastic body, resistant to various types of environmental corrosion
Lightweight and easy to install, 1/2 the weight of an aluminum cylinder and 1/5 the weight of a stainless steel cylinder.
Connection dimensions in accordance with 5211,NAMUR standards
Contact Us

Corrosion resistant plastic pneumatic actuators Details





Double Acting Actor Output Torque (nm)

Type

Air Pressure (BAR)

3

4

5

5.5

6

7

PLT05DA

13.3

18.3

23.4

26

28.5

33.6

PLT07DA

32.9

45.6

58.3

65

71

83.7

PLT09DA

77.7

107

436.3

150.9

165.4

194.8


型号

启闭时间(S)

PLT05DA

0.4

PLT07DA

0.5

PLT09DA

0.6

PLT05SR

0.5

PLT07SR

0.6

PLT09SR

0.8


Single Acting Actor Output Torque (nm)

Air Pressure (BAR)

4

5

6

7

Spring Torque

Type

Spring Qty

start

end

start

end

start

end

start

end

start

end

PLT05SR

10

7.6

2.5

12.7

7.6

17.8

12.7

22.9

17.8

15.8

10.7

8

9.6

5.7

14.7

10.8

19.8

15.9

24.9

21

12.6

8.7

PLT07SR

10

19.9

7.6

32.6

20.3

45.3

33

58

45.7

38

25.7

8

25.1

15.2

37.8

27.9

50.5

40.6

63.2

53.3

30.4

20.5

PLT09SR

10

52.2

19.8

81.5

49.1

110.7

78.3

140

107.6

87.2

54.8

8

63.1

37.2

92.4

66.5

121.6

95.7

150.9

125

69.8

43.9

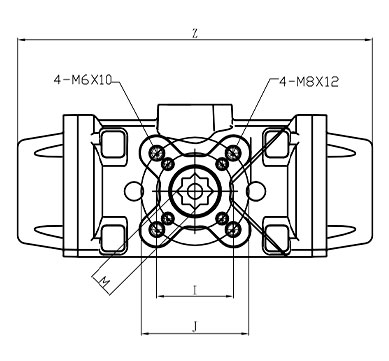

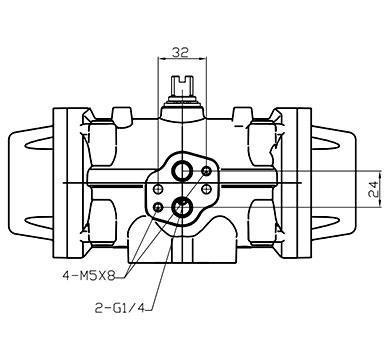

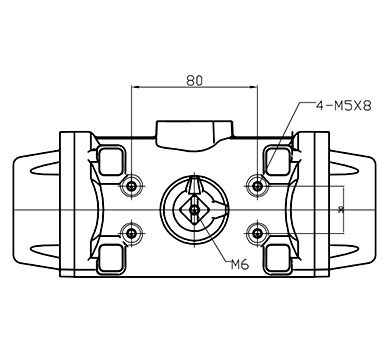

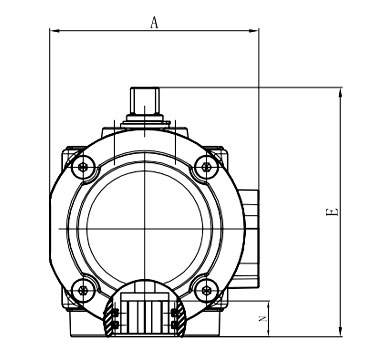

Dimensions Table (mm)

Type

z

A

E

M

N

1

J

PLT05

161

85

102

14

16

50

\

PLT07

230

104

124

17

19

50

70

PLT09

313

122

147

22

20

70

\
