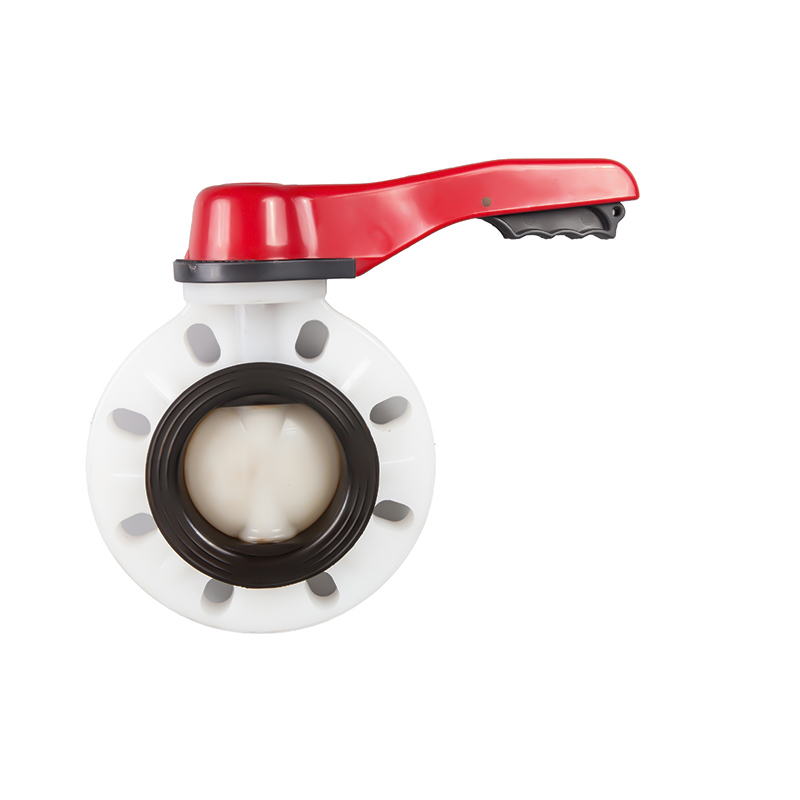

Butterfly Valve-Lever Handle Type
  • Butterfly Valve-Lever Handle Type
  • Butterfly Valve-Lever Handle Type

Butterfly Valve-Lever Handle Type

Features：

● Sealing performance has been improved due to its specially designed seat.

● Thickened valve body and reinforcing ribs, no hollow design, design optimization for stress concentration, enhance the strength of the valve under harsh conditions

● Spherical design disc provides superior durability and improved Cv value.

Contact Us

Butterfly Valve-Lever Handle Type Details

Parts&Material

No.

Parts

Materials

1

Body

FRPP,PPH,UPVC,CPVC,PVDF

2

Seat

EPDM,FPM

3

Locking Plate

PPS,FRPP

4

Handle

ABS,FRPP

5

Stem

Steel, stainless steel

6

Compressor

FRPP,PPH,UPVC,CPVC,PVDF

7

O-ring

EPDM,FPM


Dimensions Table（mm）

DN

d

D

D1

L

n

Working pressure(Mpa)

GB/DIN

JIS

ANSI

GB/DIN

JIS

ANSI

25

35

85

90

79

125

37

4

4

4

1.0

32

35

100

100

89

125

37

4

4

4

1.0

40

47

110

105

98

145

38

4

4

4

1.0

50

56

125

120

121

160

40

4

4

4

1.0

65

71

145

140

140

180

45

4

4

4

1.0

80

85

160

150

152

195

46

8

8

4*

1.0

100

105

180

175

190

225

55

8

8

8

1.0

125

131

210

210

216

255

62

8

8

8

0.6#

150

153

240

240

241

285

67

8

8

8

0.6#

200

210

295

290

298

340

85

8

12*

8

 0.6#

#The specifications marked with numbers can be customized for butterfly valves with a working pressure of 1.0Mpa
