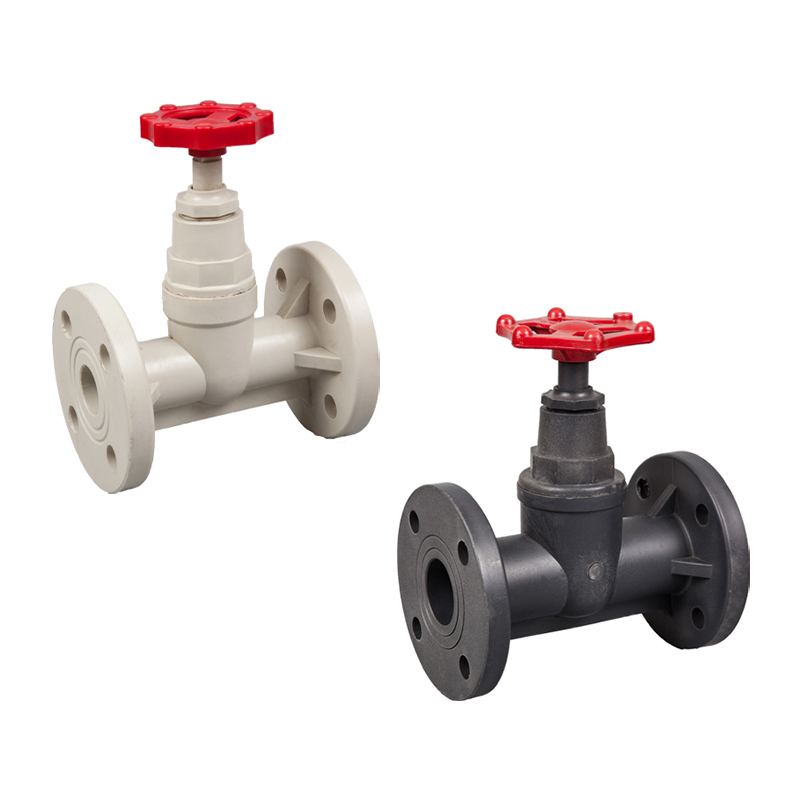

Features：
● Cost-effective valve with throttling performance.
● Backflow Prevention.

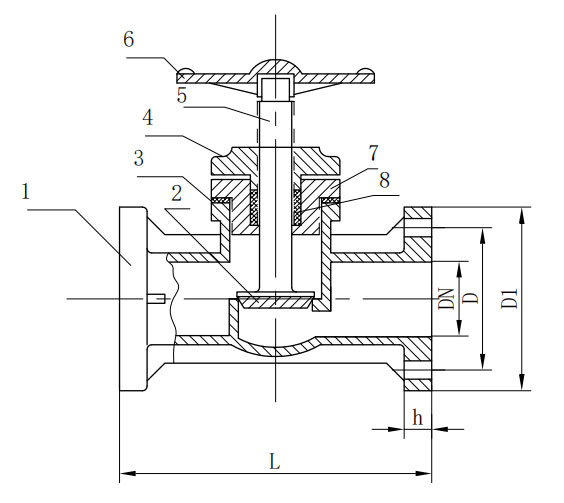

Parts&Material
|
No. |
Parts |
Materials |
|
1 |
Body |
FRPP,PPH,PVDF |
|
2 |
Disc |
FRPP,PPH,PVDF |
|
3 |
Cushion |
EPDM,FPM |
|
4 |
Sleeve |
FRPP,PPH,PVDF |
|
5 |
Stem |
Steel，stainless steel, copper alloy |
|
6 |
Hand wheel |
ABS |
|
7 |
Bonnet |
FRPP,PPH,PVDF |
|
8 |
Stem seal |
PTFE |
Dimensions Table（mm）
|
DN |
D |
D1 |
L |
h |
n |
φ |
Working pressure(Mpa) |
|
25 |
85 |
115 |
160 |
16 |
4 |
14 |
0.6 |
|
32 |
100 |
140 |
180 |
16 |
4 |
18 |
0.6 |
|
40 |
110 |
150 |
200 |
18 |
4 |
18 |
0.6 |
|
50 |
125 |
165 |
230 |
18 |
4 |
18 |
0.6 |
|
65 |
145 |
185 |
290 |
22 |
4 |
18 |
0.6 |
|
80 |
160 |
200 |
310 |
25 |
8 |
18 |
0.6 |
|
100 |
180 |
220 |
350 |
25 |
8 |
18 |
0.6 |
|
125 |
210 |
250 |
400 |
30 |
8 |
18 |
0.6 |
|
150 |
240 |
285 |
480 |
30 |
8 |
22 |
0.6 |
