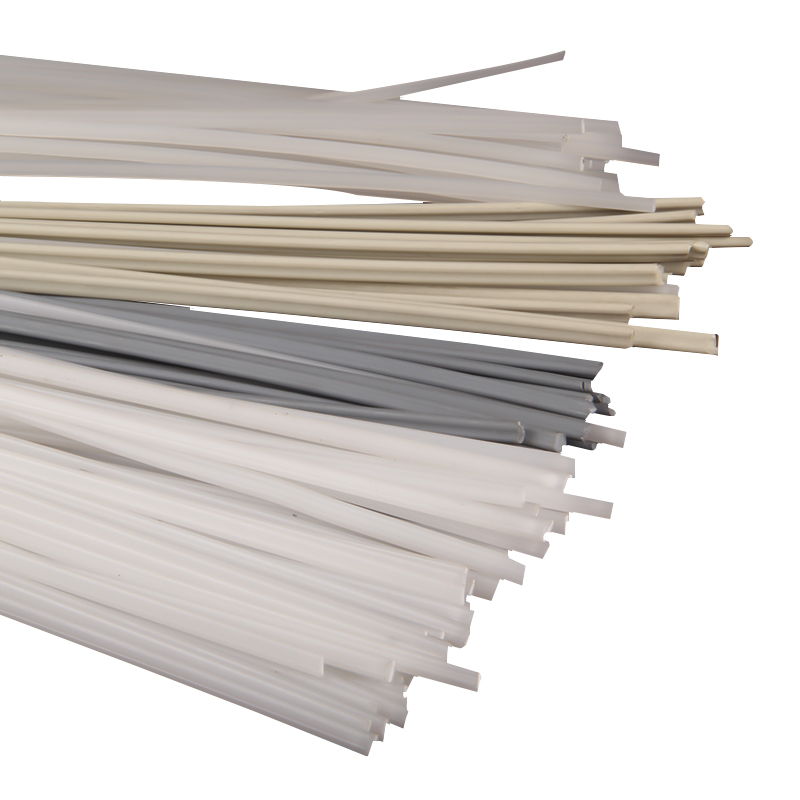

Sctew/weldig rod main connection dimension
Specifications |
Shape size(mm) |
Length (mm) |
||
d |
L |
H |
||
1.5 |
1.5 |
1 |
1.2 |
1000 |
2.0 |
2 |
1.5 |
1.7 |
1000 |
2.5 |
2.5 |
2.5 |
2.2 |
1000 |
FRPP,Screws、Nuts(GB5789-86)
M12 x 50 |
M14X90 |
M16 x 50 |
M16X90 |
M16 x 60 |
M20X100 |
M16 x 70 |
where RH refers to PVC |
Note: Ml4 which is 1.30 x 90 thread, the rest were T-thread.
