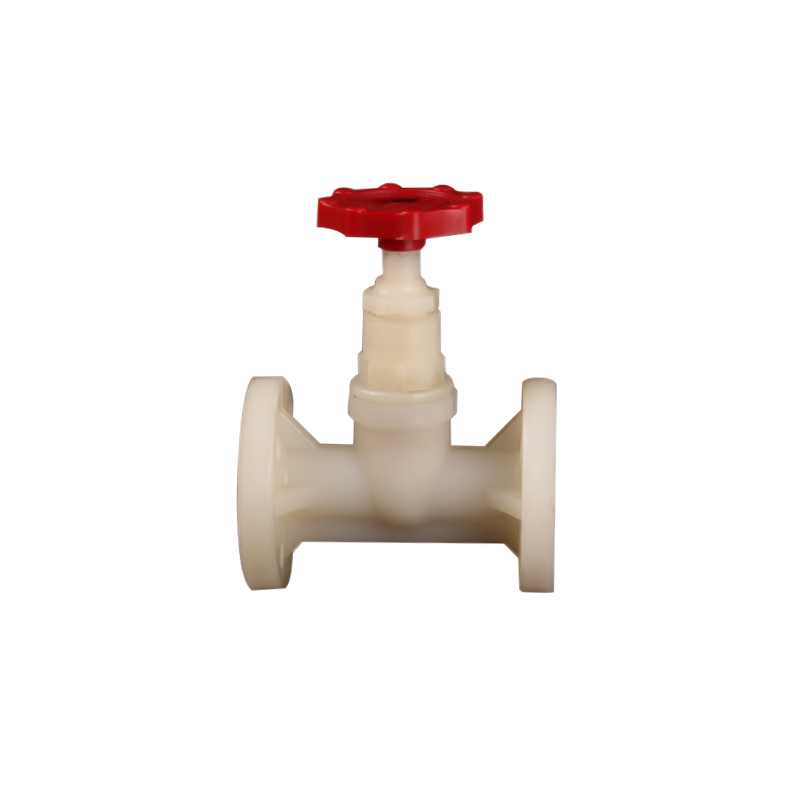

Industrial Usage PPH Flanged Globe Valve

Industrial Usage PPH Flanged Globe Valve

Media: Water, Chemical, Indrustry
Temperature: Ordinary Temperature
Driving Mode: Manual
Material: Pph
Connection Form: Flange
Structure: Through Way Globe Valve
Sealing Form: Bellows Globe Valve
Model NO.: Plastic Globe Valve
Seal Form: Auto Sealed
Stem Thread Position: Inside Screw Stem Globe Valve
Standard: DIN, JIS, ANSI
Trademark: BAODI
Origin: Zhejiang, China
Transport Package: Carton/Plywood Box
Valve Body: Injection
Work Pressure: Low Pressure (Pn<1.6mpa)
Working Temperature: Normal Temperature (-40°C<T<120°C)
Application: Industrial Usage, Water Industrial Usage, Household Usage

Contact Us

Industrial Usage PPH Flanged Globe Valve Details



Part material list

The datas are updating. Please contact our sales for more details

NO.

Name

 Material

NO.

N am e

Material

1

Body

FRPP.PVDF

0

bracket

FRPP.PVDF

2

Seal

FRPP.F2

7

Stem

RPP.PVDF Stainless st eel,steel

3

Seal

EPDM.FRM

8

Nut

Stainless steel, steel

4

Bonnet

FRPP.PVDF

0

Hand wheel

ABS

5

Screw bolt

Stainless steel, steel





Globe valve size table

The datas are updating. Please contact our sales for more details

DN

(mm) Receives insertsthe type size

(Mpa)

g/Weight

D1

D2

L

H

T

year

*

Working
pressure

FRPP

PVDF

25

85

115

160

200

16

4

14

0.6

0.97

1.6

32

100

140

180

220

16

4

18

0.6

1.25

2.1

40

110

150

200

250

18

4

18

0.6

1.60

2.7

50

125

165

230

275

18

4

18

0.6

2.4

4.1

65

145

185

290

350

22

8

18

0.6

4.5

7.6

※80

160

200

310

390

25

8

18

0.6

5.6

9.5

100

180

220

350

400

25

8

18

0.5

8.8

15

125

210

250

400

410

30

8

18

0.5

12.5

20

150

240

285

480

430

30

8

23

0.4

16

25

200

295

340

600

480

35

12

23

0.4

18

30
