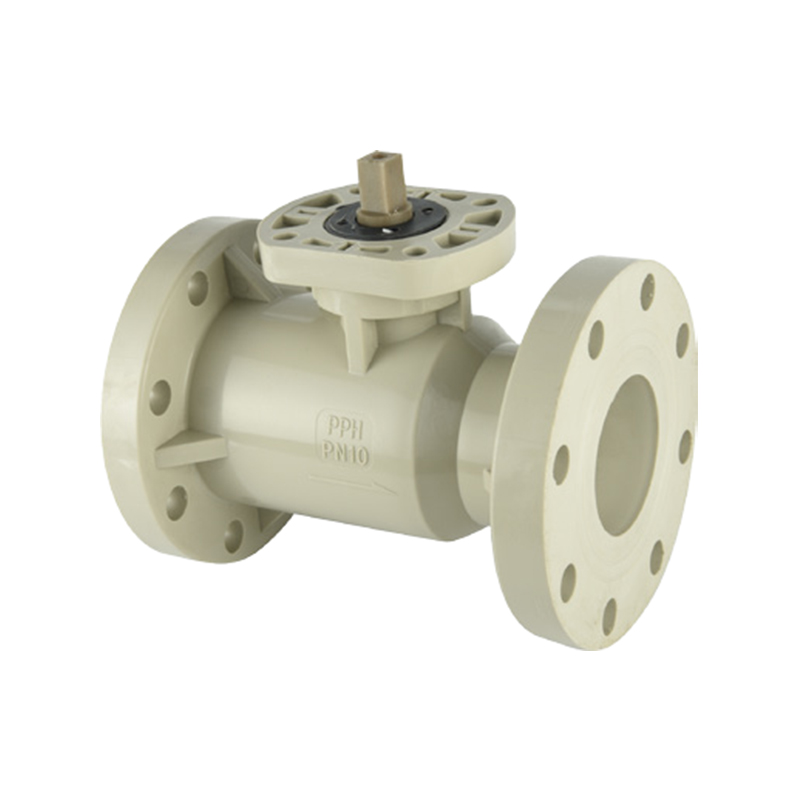

Flanged Ball Valve For Automation

Flanged Ball Valve For Automation

Features：

● Original design, combines the advantages of flanged ball valves, suitable for various types of actuators.

● All-plastic design, no bracket and connection sleeve required for actuator mounting. We can also provide all-plastic brackets and connection sleeves to allow smaller pneumatic/electric actuators to be mounted directly on the valve.

● Four-hole positioning, bolt-nut connection, strength and stability significantly better than two-hole positioning or self-tapping screw positioning.

● PVDF stem with excellent mechanical strength even under severe service conditions.

Contact Us

Flanged Ball Valve For Automation Details

Ball Valve Torque Reference Table

Size	Safety Torque
15	≤10
20	≤10
25	≤10
32	12
40	15
50	20
65	40
80	45
100	65
125	85
150	130
200	250
250	400
300	800

Notes： Safety factor 1.2-2

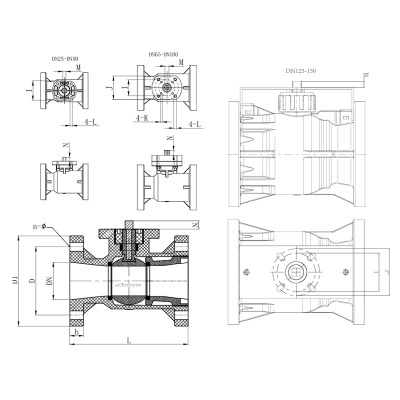

Dimensions Table （mm）

DN	D1	D			L	b	D			φ			Working pressure(Mpa)			I	J	M	N
DN	D1	DIN	JIS	ANSI	L	b	HG/DIN	JIS	ANSI	HG/DIN	JIS	ANSI	FRPP/PPH	UPVC/CPVC	PVDF	I	J	M	N
15	95	65	70	60	100	15	4	4	4	14	15	16	1.0	1.6	1.6	70	/	11	11
20	105	75	75	70	120	17	4	4	4	14	15	16	1.0	1.6	1.6	70	/	11	11
25	115	85	90	79	140	17	4	4	4	14	15	16	1.0	1.6	1.6	70	/	11/14*	11
32	135	100	100	89	160	18	4	4	4	18	19	16	1.0	1.6	1.6	70	/	11/14*	11
40	145	110	105	98	165	18	4	4	4	18	19	16	1.0	1.0	1.6	70	/	14/17*	17
50	160	125	120	121	180	20	4	4	4	18	19	19	1.0	1.0	1.6	70	/	14/17*	17
65	180	145	140	140	220	22	4	4	4	18	19	19	1.0	1.0	1.0	70	102	14/17	21
80	195	160	150	152	250	25	8	8	4*	18	19	19	1.0	1.0	1.0	70	102	14/17	21
100	215	180	175	190	280	25	8	8	8	18	19	19	1.0	1.0	1.0	70	102	17/22	24
125	245	210	210	216	325	30	8	8	8	18	19	22	0.6	0.6	0.6	125	/	22/27*
150	280	240	240	241	365	30	8	8	8	22	23	22	0.6	0.6	0.6	125	/	22/27*
200	335	295	290	298	405	35	8	12*	8	22	23	22	0.3	0.3	0.3	125	/	22/27*
250	400	350	355	362	500	38	12	12	12	22	25	26	0.3	0.3	0.3	125	/	22/27*
300	455	400	400	432	600	40	12	16*	12	22	25	26	0.3	0.3	0.3

*Indicates that the connection size of the valve stem is square, which can be added into 8 corners
