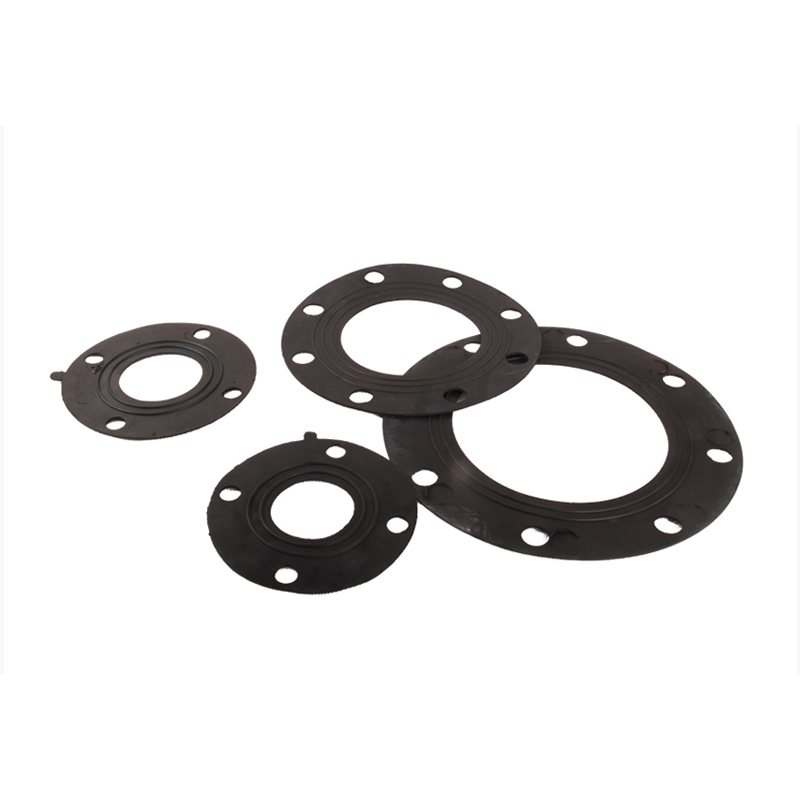

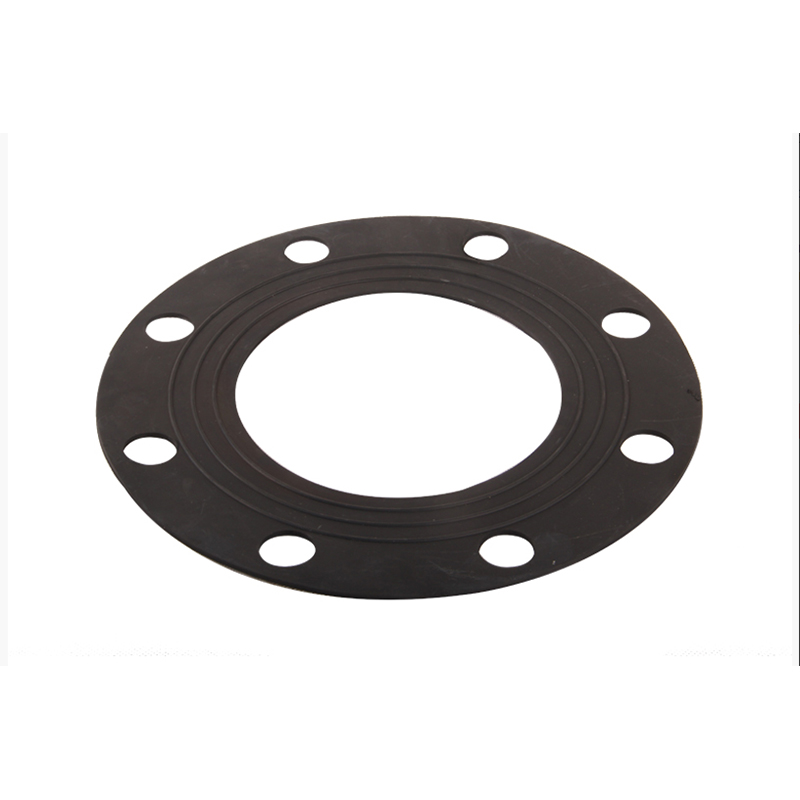

Rubber sealing washer
The datas are updating. Please contact our sales for more details
|

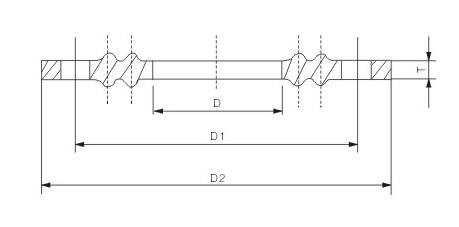

DN(mm)Noninal diameter |
D |
D1 | D2 | T | n | Ø | ||||||||||||
|
HG |
JIS |
ANSI |
DIN |
HG |
JIS |
ANSI |
DIN |
HG | JIS | ANSI | DIN | HG | JIS | ANSI | DIN | |||
|
15 |
18 |
65 |
70 |
60 |
65 |
95 |
93 |
87 |
93 |
3 |
4 | 4 | 4 | 4 | 14 | 15 | 16 | 14 |
|
20 |
22 |
75 |
75 |
70 |
75 |
105 |
98 |
96 |
103 |
3 |
4 | 4 | 4 | 4 | 14 | 15 | 16 | 14 |
|
25 |
28 |
85 |
90 |
80 |
85 |
115 |
123 |
106 |
118 |
3 |
4 | 4 | 4 | 4 | 14 | 19 | 16 | 14 |
|
32 |
37 |
100 |
100 |
90 |
100 |
135 |
133 |
118 |
133 |
3 |
4 | 4 | 4 | 4 | 18 | 19 | 16 | 18 |
|
40 |
41 |
110 |
105 |
100 |
110 |
1454 |
138 |
125 |
148 |
3 |
4 | 4 | 4 | 4 | 18 | 19 | 16 | 18 |
|
50 |
54 |
125 |
120 |
120 |
125 |
160 |
153 |
154 |
163 |
3 |
4 | 4 | 4 | 4 | 18 | 19 | 19 | 18 |
|
65 |
69 |
145 |
140 |
140 |
145 |
180 |
173 |
175 |
183 |
3 |
4 | 4 | 4 | 4 | 18 | 19 | 19 | 18 |
|
80 |
82 |
160 |
150 |
152 |
160 |
195 |
183 |
188 |
198 |
3 |
4 | 8 | 4 | 8 | 18 | 19 | 19 | 18 |
|
100 |
102 |
180 |
175 |
190 |
180 |
215 |
208 |
226 |
218 |
3 |
8 | 8 | 8 | 8 | 18 | 19 | 19 | 18 |
|
125 |
127 |
210 |
210 |
215 |
210 |
245 |
248 |
252 |
248 |
3 |
8 | 8 | 8 | 8 | 18 | 23 | 22 | 18 |
|
150 |
152 |
240 |
240 |
241 |
240 |
280 |
278 |
277 |
283 |
3 |
8 | 8 | 8 | 8 | 23 | 23 | 22 | 23 |
|
200 |
204 |
295 |
290 |
296 |
295 |
335 |
328 |
340 |
338 |
3 |
8 | 12 | 8 | 8 | 23 | 23 | 22 | 23 |
|
250 |
254 |
350 |
355 |
360 |
350 |
390 |
398 |
404 |
393 |
3 |
12 | 12 | 8 | 12 | 23 | 25 | 25 | 23 |
|
300 |
304 |
400 |
400 |
432 |
400 |
440 |
443 |
480 |
443 |
3 |
12 | 16 | 12 | 12 | 23 | 25 | 25 | 23 |
|
350 |
354 |
460 |
445 |
476 |
460 |
500 |
488 |
531 |
503 |
3 |
16 | 16 | 12 | 16 | 25 | 25 | 28 | 25 |
| 400 | 404 | 515 | 510 | 540 | 510 | 565 | 558 | 595 | 556 | 3 | 16 | 16 | 12 | 16 | 27 | 27 | 28 | 27 |
