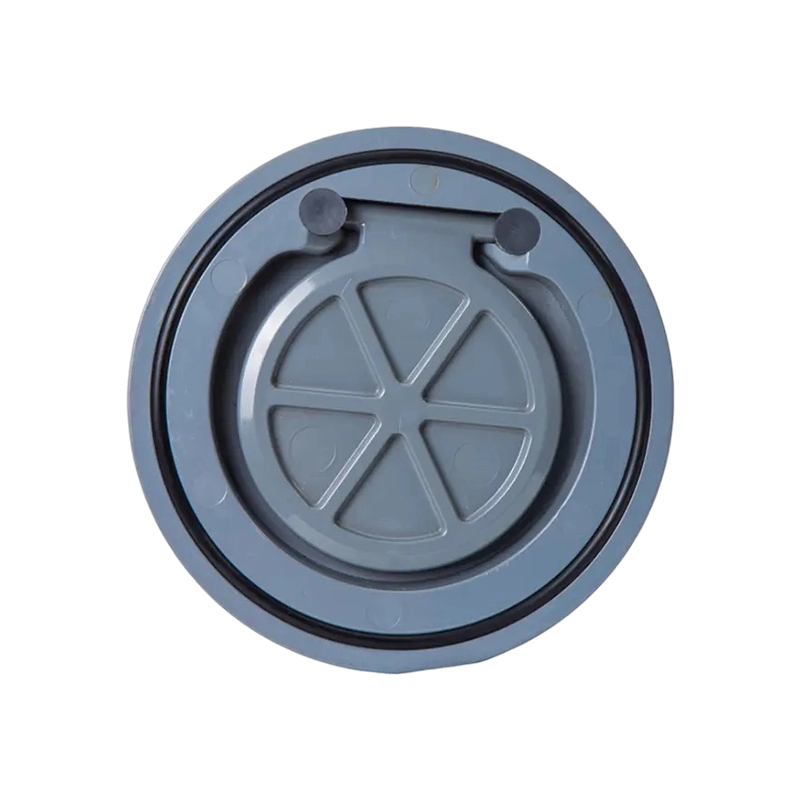

Features：
● Short face-to-face length and easy installation.
● High corrosion resistance, Lightweight and cost- effective.
● UPVC, CPVC wafer check valve fully open angle is about 40°
● Due to the small inner diameter of PPH flanges, to obtain a larger opening angle, it is necessary to chamfer the flange or add a connection plate between the flange and the valve.

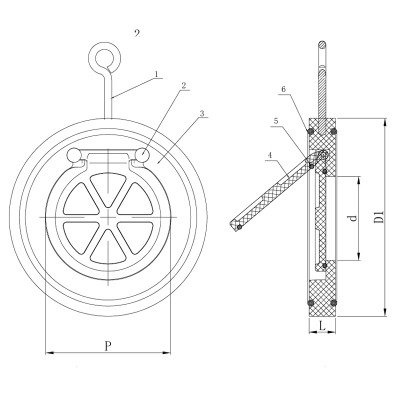

Parts&Material
|
No. |
Parts |
Materials |
|
1 |
Rings |
Stainless steel |
|
2 |
Screw |
UPVC,CPVC,PPH,PVDF |
|
3 |
Body |
UPVC,CPVC,PPH,PVDF |
|
4 |
Disc |
UPVC,CPVC,PPH,PVDF |
|
5 |
Inner O-ring |
EPDM,FPM |
|
6 |
Outside O-ring |
EPDM,FPM |
Dimensions Table（mm）
|
DN |
d |
D1 |
P |
L |
Working pressure(Mpa) |
Minimum back pressure(Mpa) |
|
DN40 |
23 |
82 |
36 |
18 |
1.0 |
0.05 |
|
DN50 |
27 |
108 |
44 |
21 |
1.0 |
0.05 |
|
DN65 |
40 |
127 |
58 |
22 |
1.0 |
0.05 |
|
DN80 |
54 |
142 |
70 |
23 |
1.0 |
0.05 |
|
DN100 |
70 |
165 |
89 |
25 |
1.0 |
0.05 |
|
DN125 |
92 |
192 |
115 |
28 |
1.0 |
0.05 |
|
DN150 |
112 |
217 |
131 |
30 |
1.0 |
0.05 |
|
DN200 |
150 |
270 |
179 |
34 |
0.6 |
0.05 |
|
DN250 |
190 |
328 |
230 |
39 |
0.6 |
0.05 |
|
DN300 |
216 |
378 |
260 |
44 |
0.6 |
0.05 |
