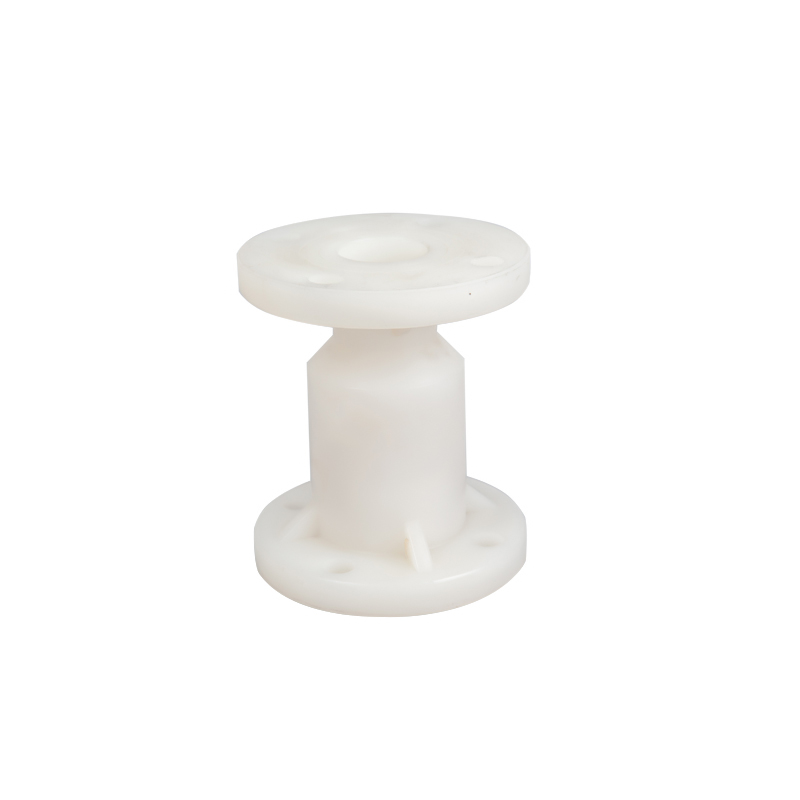

Ball Check Valve-Flanged Type
  • Ball Check Valve-Flanged Type
  • Ball Check Valve-Flanged Type

Ball Check Valve-Flanged Type

Features：

● The full-spherical ball design, the valve is not easy to block when the medium contains particles.

● PTFE ball is available, which bring excellent sealing and high corrosion resistance.

● Unique structural design makes the flow resistance of the valve smaller.

● When the valve is installed, the medium flow direction should refer to the big black arrow.

Contact Us

Ball Check Valve-Flanged Type Details

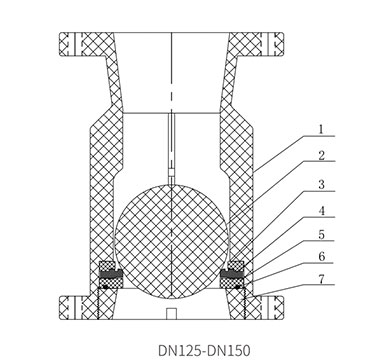

Parts&Material

No.

Parts

Materials

1

Body

FRPP, PPH, UPVC, CPVC, PVDF

2

Ball

FRPP, PPH, UPVC, CPVC, PVDF, PTFE

3

Plastic gasket

FRPP, PPH, UPVC, CPVC, PVDFDN125-150 Used Only

4

Seal

PTFE, EPDM, FPM

5

Plastic gasket

FRPP, PPH, UPVC, CPVC, PVDF DN125-150 Used Only

6

O ring

PTFE, EPDM, FPM DN125-150 Used Only

7

Inner plug

FRPP, PPH, UPVC, CPVC, PVDF

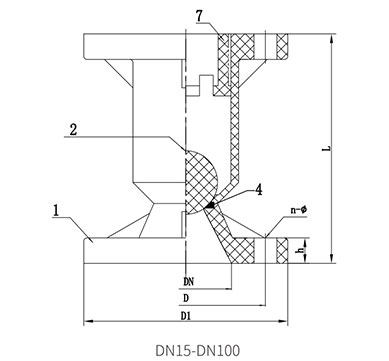

Dimensions Table（mm）

DN

  D1

(mm)

D(mm)

L(mm)

h(mm )

n

φ(mm)

Working pressure(Mpa)

Minimum back pressure(Mpa)

DIN

JIS

ANSI

HG/DIN

JIS

ANSI

HG/DIN

JIS

ANSI

15

95

65

 70

60

100

15

4

4

4

14

15

16

1.0

0.1

20

105

75

 75

70

120

17

4

4

4

14

15

16

1.0

0.1

25

115

85

 90

79

140

17

4

4

4

14

15

16

1.0

0.1

32

135

100

100

89

160

17

4

4

4

18

19

16

1.0

0.1

40

145

110

105

98

165

17

4

4

4

18

19

16

1.0

0.1

50

160

125

120

121

180

20

4

4

4

18

19

19

1.0

0.1

65

180

145

140

140

220

22

4

4

4

18

19

19

0.6

0.1

80

195

160

150

152

250

25

8

8

4*

18

19

19

0.6

0.1

100

215

180

175

190

280

25

8

8

8

18

19

19

0.6

0.1

125

245

210

210

216

325

30

8

8

8

18

19

22

0.4

0.1

150

280

240

240

241

365

30

8

8

8

22

23

22

0.4

0.1

200

335

295

290

298

405

35

8

12*

8

22

23

22

0.3

0.1

250

400

350

355

362

500

38

12

12

12

22

25

26

0.3

0.1

300

455

400

400

432

600

40

12

16*

12

22

25

26

0.3

0.1
