Radiator valves are a crucial component of any heating system, controlling the flow of hot water into your radiators to regulate room temperature and ensure the system operates efficiently. While many people are familiar with the common manual control valve, the lockshield valve plays an equally important but often misunderstood role in a heating system. This article will compare and contrast these valve types, helping you understand their specific functions and guiding you in choosing the right option for your home's heating needs.
A manual control valve is a basic type of radiator valve that allows you to manually adjust the flow of hot water into a radiator. It works like a simple tap or faucet. By turning the valve's head (usually a knob or wheel), you can either increase or decrease the flow of water. Turning it clockwise reduces the flow, effectively "turning down" the radiator, while turning it counter-clockwise increases the flow, "turning up" the heat.
Pros:
Simple to use: Their operation is intuitive, requiring no technical knowledge.
Cost-effective: They are generally less expensive to purchase and install compared to more advanced valves.
Readily available: Manual valves are a common and widely accessible option.
Cons:
Requires manual adjustment: To control the room temperature, you must physically go to each radiator and adjust the valve.
Less precise temperature control: Unlike a thermostat, it does not automatically sense the room temperature, so it can lead to overheating or under-heating if not monitored.
Can lead to energy waste: If left fully open in a room that is already warm, it will continue to heat, leading to wasted energy and higher heating bills.
A lockshield valve is the second valve found on a radiator, typically on the opposite end from the main control valve. Its primary purpose is to "balance" the heating system. It works by restricting the flow of water out of the radiator, helping to ensure that the entire heating system receives an even distribution of hot water. It usually comes with a protective cap that discourages frequent adjustment, as it is a set-it-and-forget-it component. To adjust it, you must remove the cap and use a spanner or pliers.
Pros:
Set it and forget it: Once the system is balanced, this valve does not need to be adjusted again, unless there are significant changes to the heating system.
Helps to balance the heating system: It ensures all radiators heat up at the same rate and reach the desired temperature, preventing some rooms from being hot while others remain cold.
Energy efficiency: A properly balanced system operates more efficiently, reducing energy consumption and heating costs.
Cons:
Requires professional to adjust: For optimal performance, balancing a heating system is a technical task best performed by a heating professional.
Inconvenient if temperature changes are needed: It is not designed for daily temperature adjustments, making it unsuitable for rooms where you want to frequently change the heat output.
Adjustment Frequency:
Manual Control Valve: Designed for frequent, daily adjustments by the user to control the room temperature.
Lockshield Valve: Designed to be set once during system balancing and rarely, if ever, adjusted thereafter.
Purpose:

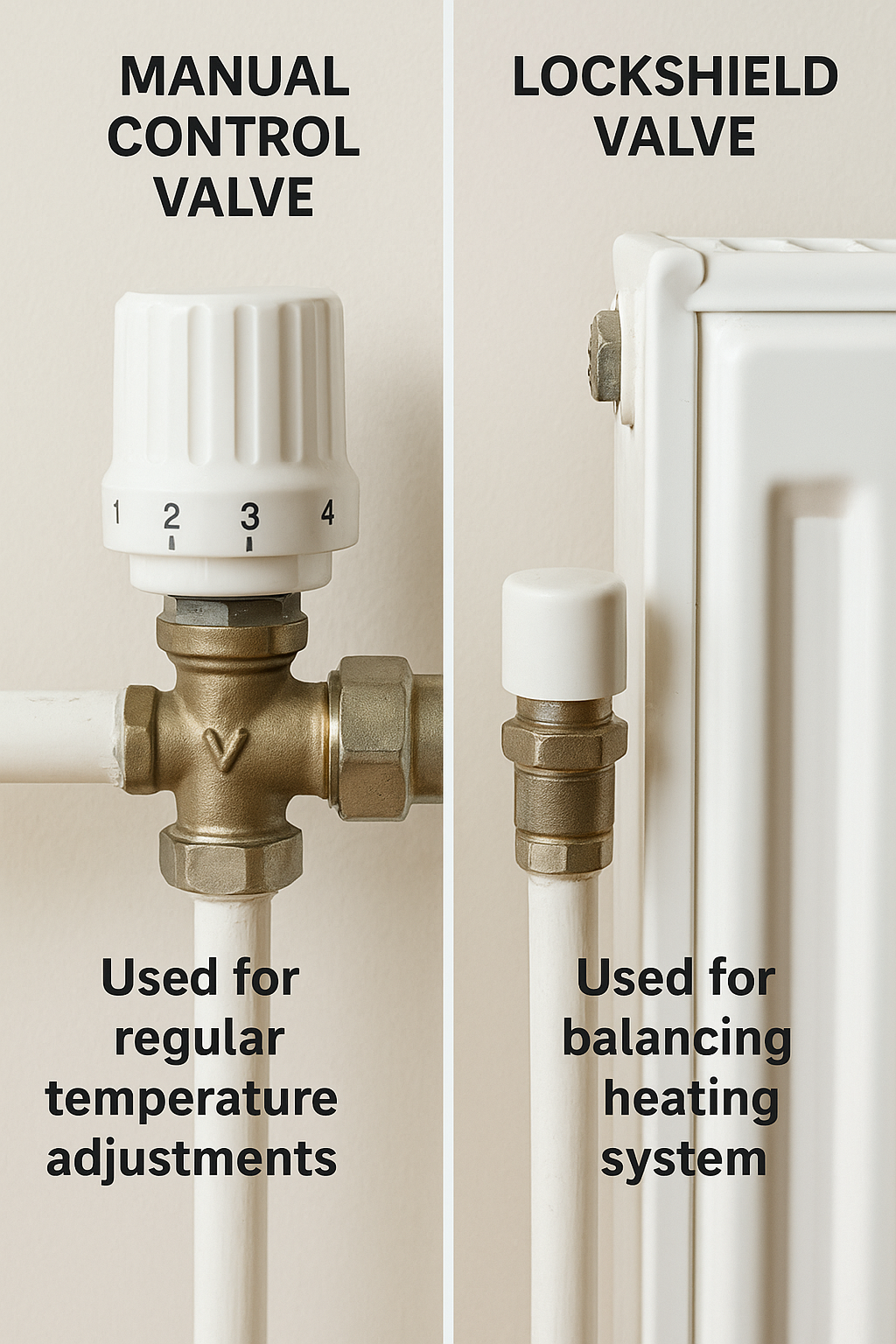

Manual Control Valve: Used for regular temperature adjustments and comfort control in a specific room.
Lockshield Valve: Used for balancing the entire heating system, ensuring an even flow of water and heat distribution across all radiators.
User Interaction:
Manual Control Valve: Requires direct user interaction to change the heat output. The valve is easily turned by hand.
Lockshield Valve: Requires minimal to no user interaction after installation. The cap is often difficult to remove and requires a tool for adjustment, discouraging casual changes.
Visual Appearance:
Manual Control Valve: Typically has a large plastic knob or dial with numbers or symbols, making it easy to grip and turn by hand.
Lockshield Valve: Usually has a small plastic or metal cap that hides the spindle underneath. It has no knob or dial for manual adjustment.
Why balancing is important for efficiency and comfort: A heating system is a network of pipes and radiators. Without proper balancing, the water from your boiler will take the path of least resistance, which is typically to the radiators closest to it. This results in those radiators getting extremely hot while the ones furthest away remain lukewarm or cold. An unbalanced system leads to uneven heating, discomfort, and wasted energy as the boiler works harder to heat the entire system.
How lockshield valves are crucial for the balancing process: Lockshield valves are the key to balancing. They are adjusted to restrict the flow of water on the "return" side of the radiator. By partially closing the lockshield valves on the radiators closest to the boiler, you increase the resistance in their circuit, forcing more hot water to flow to the radiators further down the line. This ensures a more even distribution of heat across all radiators.
Briefly explain how to balance a system (or link to a detailed guide): The process of balancing a system typically involves these steps:
Turn off the heating system and let all radiators cool down completely.
Open all manual and lockshield valves fully.
Turn the heating on and identify the order in which the radiators heat up. Note the radiator closest to the boiler that heats up first.
Turn off the heating and let the radiators cool again.
Once cool, go to the fastest-heating radiator and close its lockshield valve completely, then open it back up by a small amount (e.g., a quarter turn).
Repeat this process for each radiator, opening the lockshield valve slightly more each time as you move further away from the boiler. The radiator furthest from the boiler should have its lockshield valve fully open.
Turn the heating back on and check the temperature of each radiator. They should all heat up at a similar rate. You may need to fine-tune the adjustments to achieve an optimal balance.
Situations where lockshield valves are the preferred choice:
Balancing a new or existing heating system: The primary and most important use for a lockshield valve is to balance your heating system. This is essential for new installations or when you've made changes like adding or moving a radiator. A balanced system ensures all radiators receive a sufficient flow of hot water to heat up evenly.
Maintaining consistent temperature distribution: Once a heating system is properly balanced, the lockshield valves should be left alone. Their purpose is to maintain a consistent flow rate to each radiator, ensuring the temperature is distributed evenly throughout the property without any hot or cold spots.
Situations where manual control valves are suitable:
Rooms where individual temperature control is less critical: Manual valves are a good, low-cost option for rooms where a consistent temperature is not essential, such as hallways, utility rooms, or kitchens, which often have other sources of heat.
Supplementing TRVs in certain situations: In some systems, a manual valve is used as the primary control in a room with a thermostat, or in a room with a fireplace, as a TRV in that room could be fooled by the heat source and turn off the radiator too early.
Briefly explain what TRVs are and how they work: A Thermostatic Radiator Valve (TRV) is a self-regulating valve that controls the temperature of a room by automatically adjusting the flow of hot water to the radiator. It contains a sensor (usually a wax or liquid-filled capsule) that expands or contracts based on the room's ambient temperature. This movement pushes or retracts a pin, which in turn opens or closes the valve to let more or less hot water into the radiator.
Explain how TRVs work with lockshield and manual valves: A TRV essentially replaces a manual control valve on one side of the radiator. The lockshield valve on the other side is still essential to balance the system. The TRV regulates the flow based on the room's temperature, while the lockshield valve ensures the overall system's flow is balanced. For a heating system to be most effective, every radiator except the one in the room with the main thermostat should have a TRV.
Briefly explain how smart TRVs work and link to more information: Smart TRVs are a technologically advanced version of a standard TRV. They offer remote control via a smartphone app and advanced features like open window detection, geofencing, and the ability to set schedules for individual rooms. This level of granular control can lead to significant energy savings by only heating rooms when and to the temperature you need them to be. You can find more information about smart TRVs in a detailed guide [insert internal link here].
Installation: Installing radiator valves requires draining the system or at least isolating the radiator, so it's a job that needs care to avoid water damage. Always turn off your boiler and let the system cool down before attempting any work. You'll need basic plumbing tools like a spanner, pipe wrenches, and PTFE tape.
Maintenance: Manual and lockshield valves require very little maintenance. The main issue is a leaking valve, which can often be fixed by tightening the gland nut. If the leak persists, the valve may need to be replaced. For TRVs, it's a good idea to occasionally check that the pin is not stuck by removing the head and gently pushing it down.
While a competent DIYer can install and balance radiator valves, the process of balancing can be complex, especially in a large or complicated heating system. A heating professional has the right tools (like a thermal camera) and the experience to diagnose and fix balancing issues quickly and accurately. An improperly balanced system can lead to continued cold spots, reduced boiler efficiency, and higher energy bills, negating any cost savings from a DIY approach.
