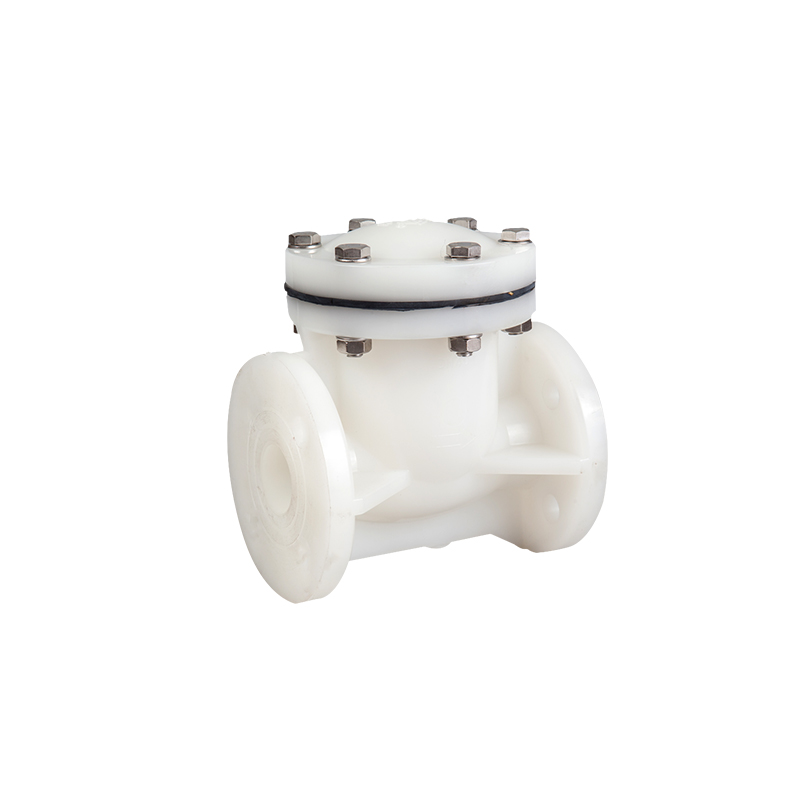

Swing Check Valve
  • Swing Check Valve
  • Swing Check Valve

Swing Check Valve

Features：

● Being of an swing arm type, the valve gives little resistance to flow.

● To maintain the SWING CHECK VALVE, only the bonnet lid has to be removed, without taking the body out of pipeline.

● High intensity, low vibration.

Contact Us

Swing Check Valve Details

Parts&Material

No.

Parts

Materials

1

Bonnet

FRPP,PPH,UPVC,CPVC,PVDF

2

Board

Steel, stainless steel

3

Stud Bolt & Nut

Steel, stainless steel

4

Swing Arms

FRPP,PPH,UPVC,CPVC,PVDF

5

Nut

FRPP,PPH,UPVC,CPVC,PVDF

6

Disc Sealing

EPDM,FPM,PTFE

7

DiscHolder

FRPP,PPH,UPVC,CPVC,PVDF

8

Disc

FRPP,PPH,UPVC,CPVC,PVDF

9

Body

FRPP,PPH,UPVC,CPVC,PVDF

10

Shoft

FRPP,PPH,UPVC,CPVC,PVDF

11

Bonnet Cushion

EPDM,FPM,PTFE


Dimensions Table（mm）

DN

D(mm)

 D1

L

h

n

φ(mm)

Working pressure(Mpa)

Minimum back pressure(Mpa)

DIN

JIS

ANSI

HG/DIN

JIS

ANSI

HG/DIN

JIS

ANSI

25

85

90

79

125

160

 16

4

4

4

14

15

16

1.0

0.05

32

100

100

89

145

180

 16

4

4

4

18

19

16

1.0

0.06

40

110

105

98

145

180

 16

4

4

4

18

19

16

1.0

0.06

50

125

120

121

160

200

 18

4

4

4

18

19

19

1.0

0.06

65

145

140

140

180

240

 22

4

4

4

18

19

19

1.0

0.08

80

160

150

152

195

260

 22

8

8

4*

18

19

19

0.6

0.08

100

180

175

190

215

300

 22

8

8

8

18

19

19

0.6

0.08

125

210

210

216

250

350

 28

8

8

8

18

19

22

0.6

0.1

150

240

240

241

280

405

 30

8

8

8

22

23

22

0.6

0.1

200

295

290

298

330

500

 34

8

12*

8

22

23

22

0.3

0.1

250

350

355

362

395

600

 37

12

12

12

22

25

26

0.3

0.1

300

400

400

432

450

600

 38

12

16*

12

22

25

26

0.3

0.1
