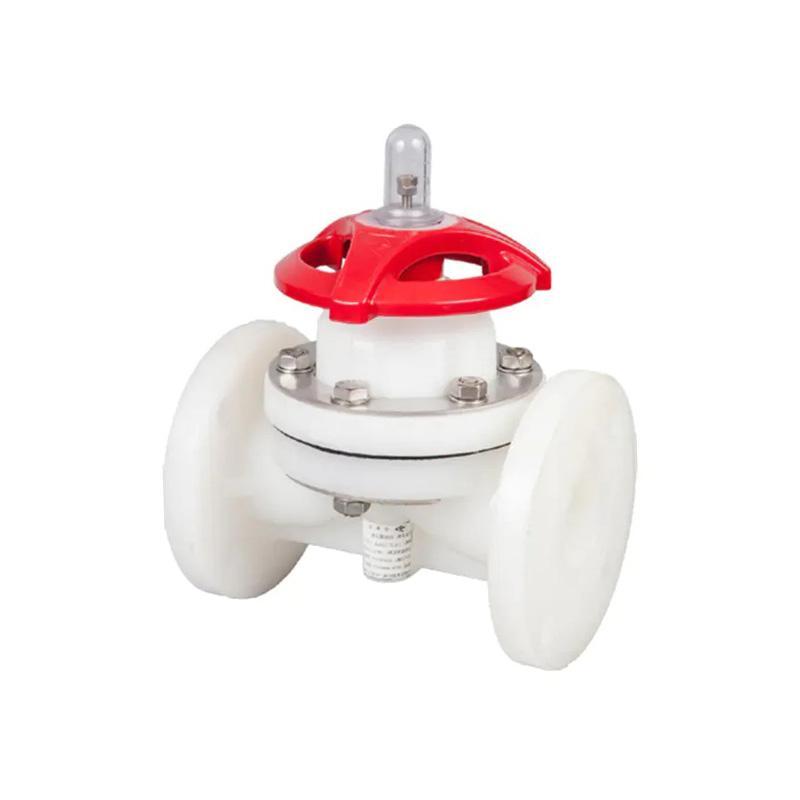

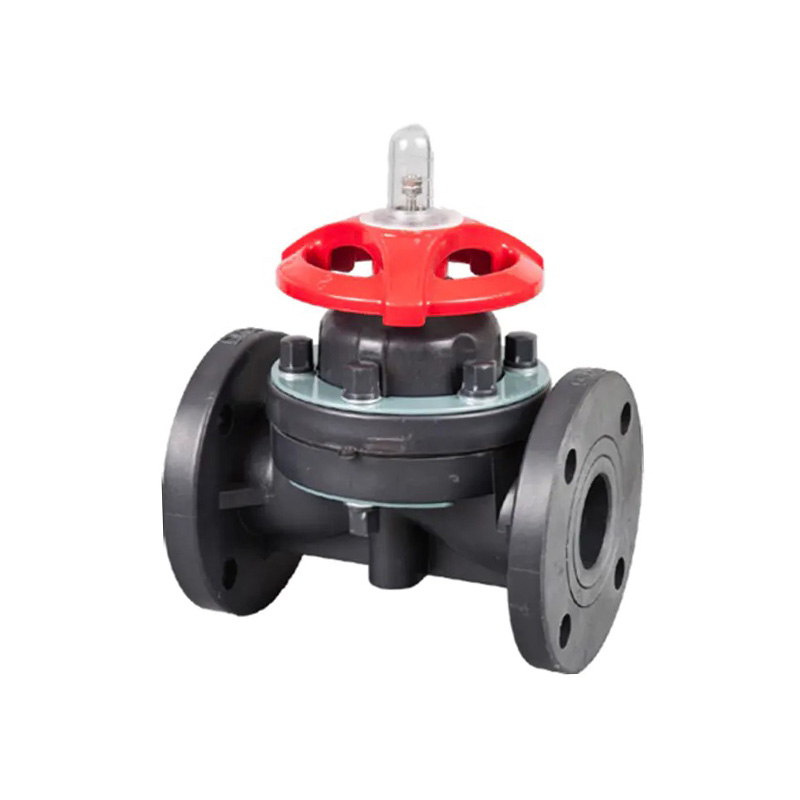

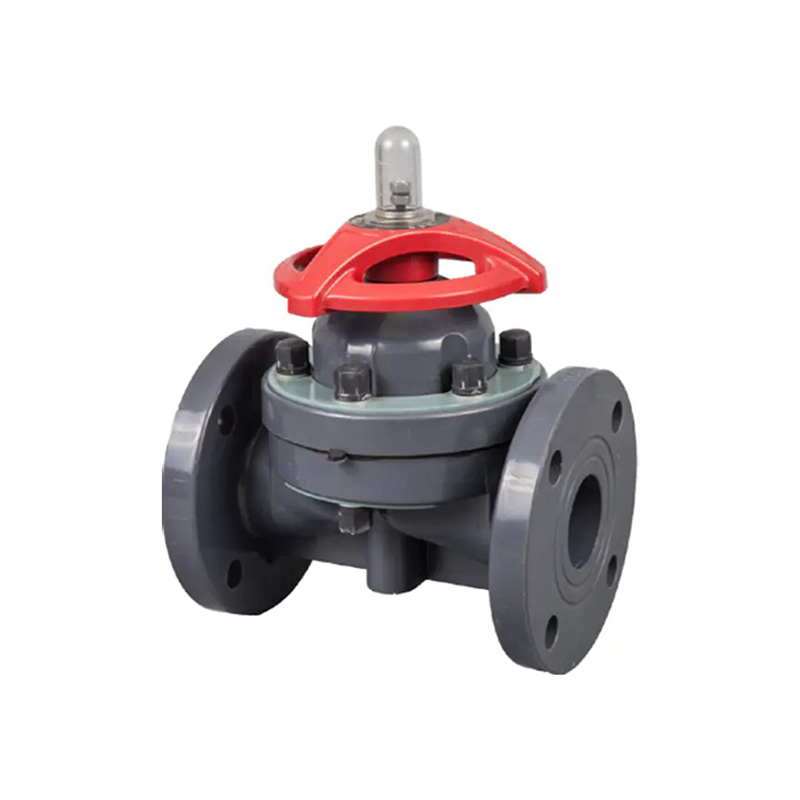

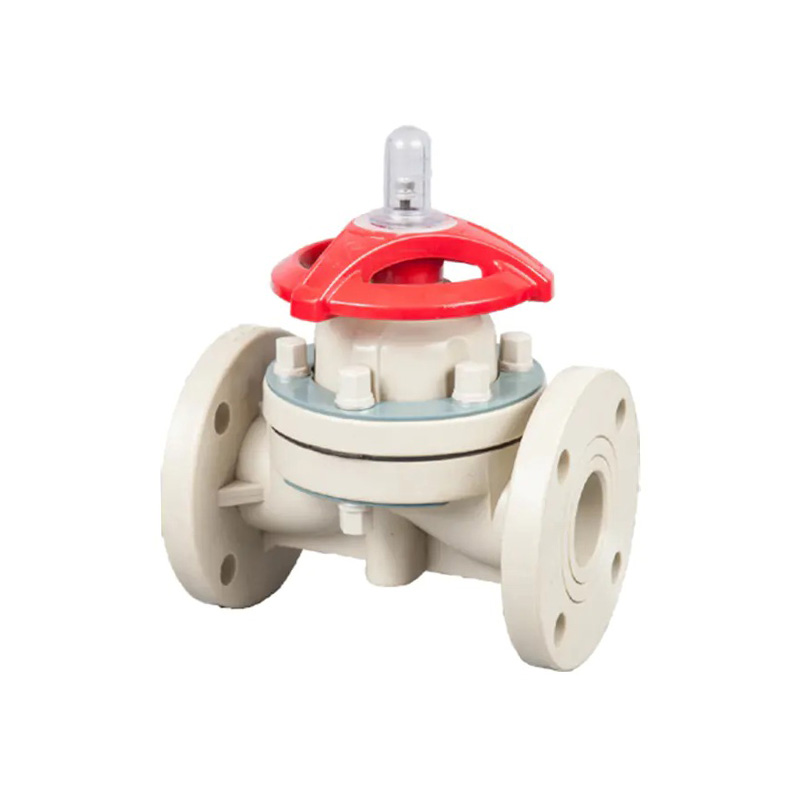

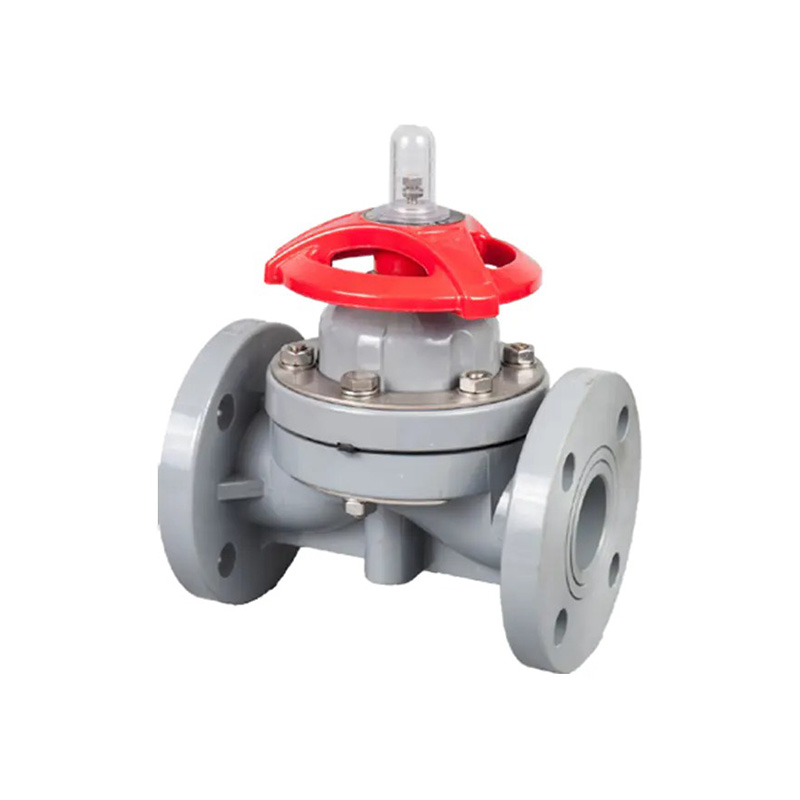

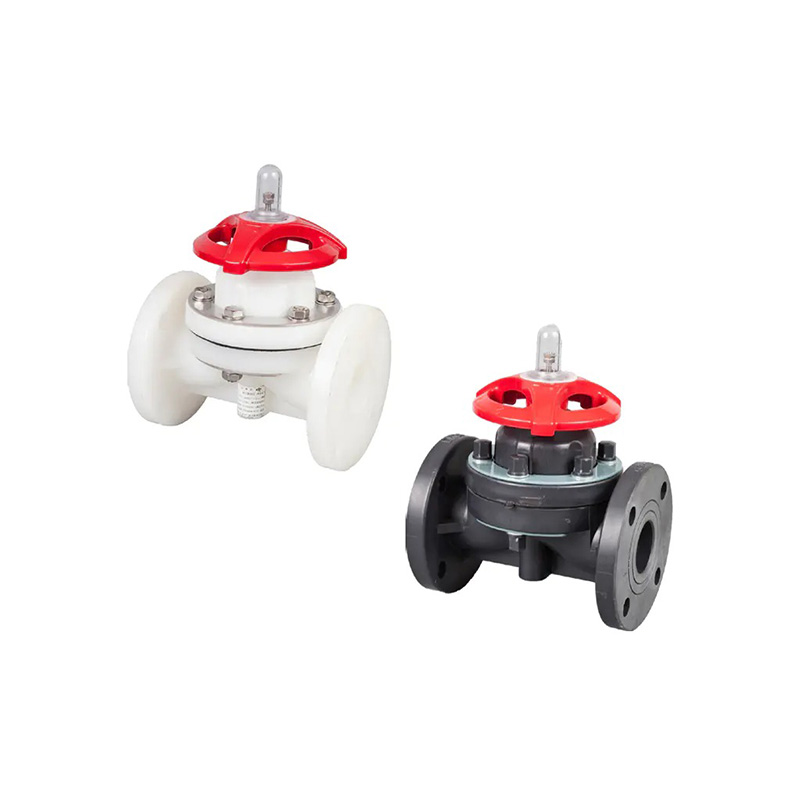

Manual Diaphragm Valve

Home / Products / Manual Valve / Manual Diaphragm Valve / Flanged Diaphragm Valves

PREV：True Union Diaphragm Valves NEXT：No next article

Parts&Materials
Demensions&Specifications
Options
FAQ
Contact Us

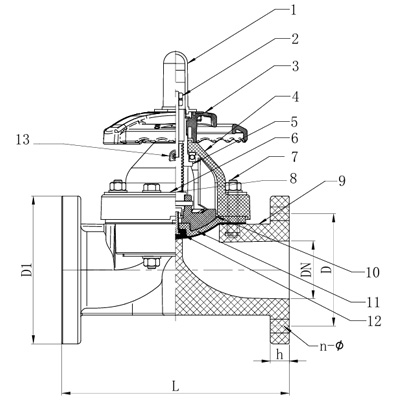

NO.	Parts	Materials
1	Gauge Cover	PC
2	Stud Nut	steel，stainless steel
3	Hand Wheel	ABS，PPG
4	Bonnet	PPG，FRPP，PPH，UPVC，CPVC，PVDF
5	Sleeve	Cast iron with nickel plating,copper alloy
6	Board	Plastc-coated steel，stainless steel
7	Stud Bolt & Nut	steel，stainless steel
8	Stem	steel，stainless steel，copper alloy
9	Body	FRPP，PPH，UPVC，CPVC，PVDF
10	Compressor	PVDF，CPVC，PVDF，CPVC，cast iron
11	Cushion	EPDM，FPM
12	Diaphragm	EPDM，FPM，PVDF，FEP，PFA，PTFE
13	Grease Nipple	DN80，80-250used only，copper alloy，stainless steel

Cv reference value
100%full open

DN			CV value

15			5.4
20			6.3
25			7.2
32			8.1
40			23.4
50			43.2
65			76.5

80			103.5

100			166.5

125			270
150			360

200			630
250			900
300			900

(Mpa) Temperature%Pressure chart

DN	FRPP			PPH			UPVC		CPVC			PVDF
	20℃	60℃	90℃	20℃	60℃	85℃	20℃	50℃	20℃	60℃	85℃	20℃	60℃	90℃	120℃
15	1.0	0.8	0.3	1.0	0.7	0.3	1.0	0.5	1.0	0.8	0.3	1.0	1.0	0.6	0.4
20	1.0	0.8	0.3	1.0	0.7	0.3	1.0	0.5	1.0	0.8	0.3	1.0	1.0	0.6	0.4
25	1.0	0.8	0.3	1.0	0.7	0.3	1.0	0.5	1.0	0.8	0.3	1.0	1.0	0.6	0.4
32	1.0	0.6	0.3	1.0	0.5	0.3	1.0	0.5	1.0	0.6	0.3	1.0	1.0	0.6	0.4
40	1.0	0.6	0.3	1.0	0.5	0.3	1.0	0.5	1.0	0.6	0.3	1.0	1.0	0.6	0.4
50	1.0	0.6	0.3	1.0	0.5	0.3	1.0	0.5	1.0	0.6	0.3	1.0	1.0	0.6	0.4
65	1.0	0.5	0.2	1.0	0.4	0.2	1.0	0.4	1.0	0.5	0.2	1.0	1.0	0.5	0.3

80	1.0	0.5	0.2	1.0	0.4	0.2	1.0	0.4	1.0	0.5	0.2	1.0	1.0	0.5	0.3

100	1.0	0.5	0.2	1.0	0.4	0.2	1.0	0.4	1.0	0.5	0.2	1.0	0.8	0.5	0.3

125	0.5	0.3	0.15	0.5	0.2	0.15	0.6	0.3	0.6	0.3	0.2	0.6	0.6	0.4	0.2
150	0.5	0.3	0.15	0.5	0.2	0.15	0.6	0.3	0.6	0.3	0.2	0.6	0.6	0.4	0.2

200	0.3	0.2	0.1	0.3	0.15	0.1	0.3	0.1	0.3	0.2	0.1	0.4	0.4	0.2	0.1
250	0.3	0.2	0.1	0.3	0.15	0.1	0.3	0.1	0.3	0.2	0.1	0.3	0.3	0.2	0.1
300	0.3	0.2	0.1	0.3	0.15	0.1	0.3	0.1	0.3	0.2	0.1	0.3	0.3	0.2	0.1

Dimensions Table

DN	D1（mm）			D（mm）			L（mm）				h（mm）	n			φ（mm）

	HG/DIN	JIS	ANSI	HG/DIN	JIS	ANSI	HG	DIN	JIS	ANSI		HG/DIN	JIS	ANSI	HG/DIN	JIS	ANSI

15	95	95	95	65	70	60	125	130	110	110/108	14	4	4	4	14	15	16

20	105	100	100	75	75	70	135	150	120	120/150	16	4	4	4	14	15	16

25	115	125	125	85	90	79	145	160	130	130/150	16	4	4	4	14	15	16

32	135	135	135	100	100	89	160	180	142*	160	16	4	4	4	18	19	16

40	145	145	145	110	105	98	180	200	180	180/176	16	4	4	4	18	19	16


50	160	160	160	125	120	121	210	230	210	210/202	18	4	4	4	18	19	19
65	180	180	180	145	140	140	250	290*	250	250	22	4	4	4	18	19	19
80	195	195	195	160	150	152	300	310	280	280/264*	25	8	8	4	18	19	19

100	215	220	220	180	175	190	350	350	340	340/329*	25	8	8	8	18	19	19
125	255	255	255	210	210	216	400	400	410	410	30	8	8	8	18	19	22

150	280	280	280	240	240	241	460	480	480	480	30	8	8	8	22	23	22
200	340	340	340	295	290	298	575	600*	570	570	38	8	12	8	22	23	22

250	395	395	395	350	355	362	685	730*	680	680	38	12	12	12	22	25	26

300	480	480	480	400	400	432	790				40	12	16	12	22	25	26
